DCD1623X2G-XE

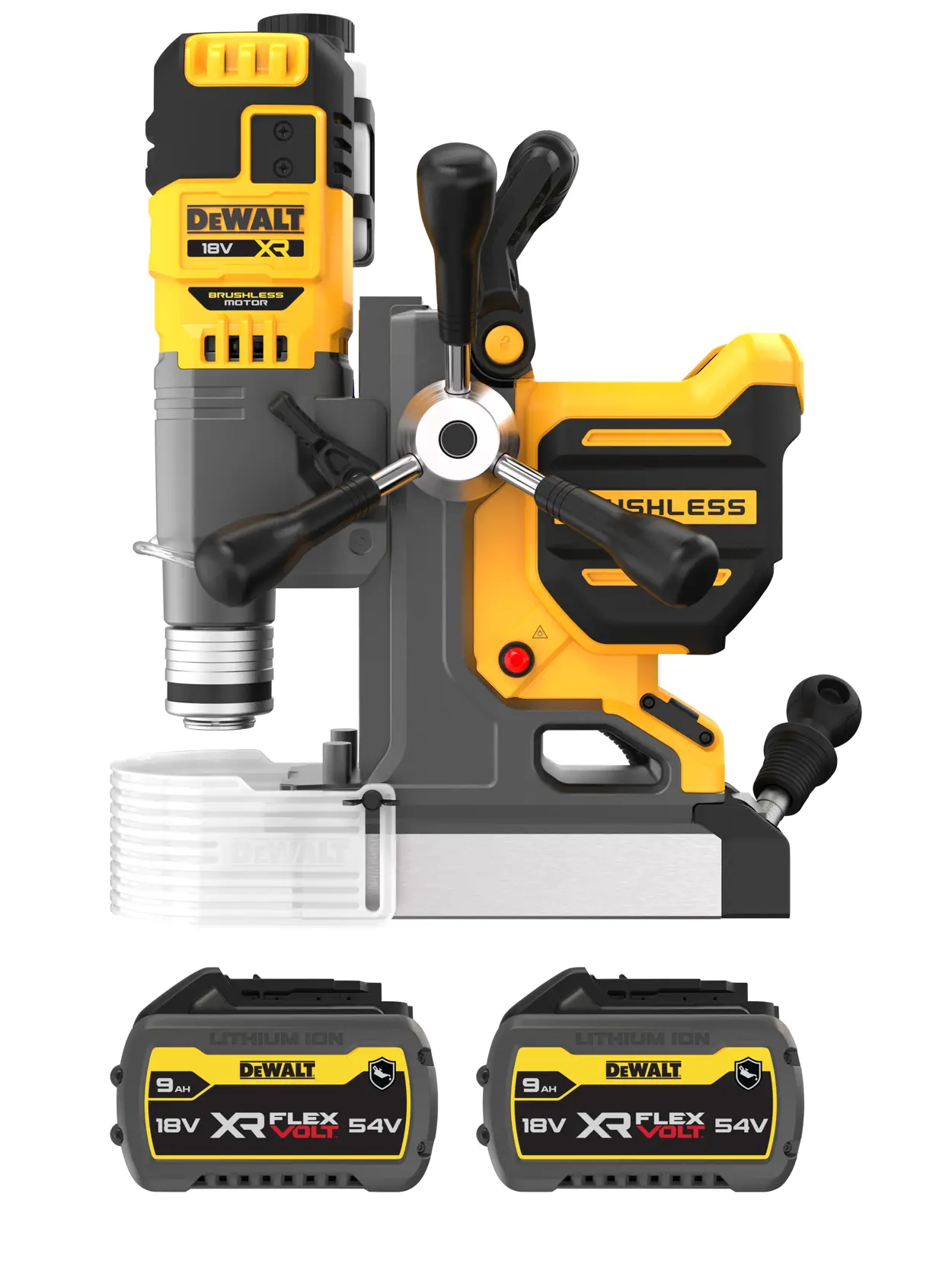

DEWALT® 18V XR® Brushless Magnetic Drill - 2 X 9Ah GFN Batteries

DEWALT® 18V XR® Brushless Magnetic Drill - 2 X 9Ah GFN Batteries

Reviews

Explore More Options

Current Option

Product details

This 18V XR Brushless 50mm Magnetic Drill features technology that makes the drill up to 32% more powerful when using a XR FlexVOLT DCB547 battery*. Built to help prevent tool failure due to lost power, it securely attaches to metal by using a permanent magnet base that requires no electrical charge. This high-performance magnetic drill press packs the capacity to drill up to 40 holes per charge*he Quick-Change Chuck system allows for tool free change between 19mm Weldon Shank and 13mm keyed chuck (Included). To keep the user in control, the E-Clutch is designed to turn off when it detects rotation, part of the PERFORM & PROTECT„¢ family. The drill has 5 variable speeds for each of the 2 mechanical gears for a total of 10 speed settings to allow for a wide RPM range for a variety of applications.*Using DCB547G battery vs. DCB184 battery,*Up to 40 holes per charge on 13mm ASTM A36 steel 20mm hole size using DCB547G battery.

  • 18V XR brushless magnetic drill
  • Brushless motor: delivers high performance, extends tool life and allows for a much shorter design
  • High drilling capacity: drilling up to 50 mm hole through 50mm structural steel
  • On board led: for high visibility in low light situations
  • Permanent magnet: requires no electrical charge to attach to steel
  • Adjust speed based on the demands of the job: with 5 variable speeds for each of the 2 mechanical gears for a total of 10 speed settings
  • Greater range of accessory compatibility with the motor height adjustment
  • Anti-rotation technology: designed to turn off when it detects rotation, part of the perform & protect™ family
  • Glass-filled, nylon battery housing and tool cover: tackle tasks without worrying about damage caused by exposure to oil, grease, or solvent

Product Type
Drill Press
Voltage
18V
Cordless or Corded
Cordless
Power Source
Battery
Motor Type
Brushless

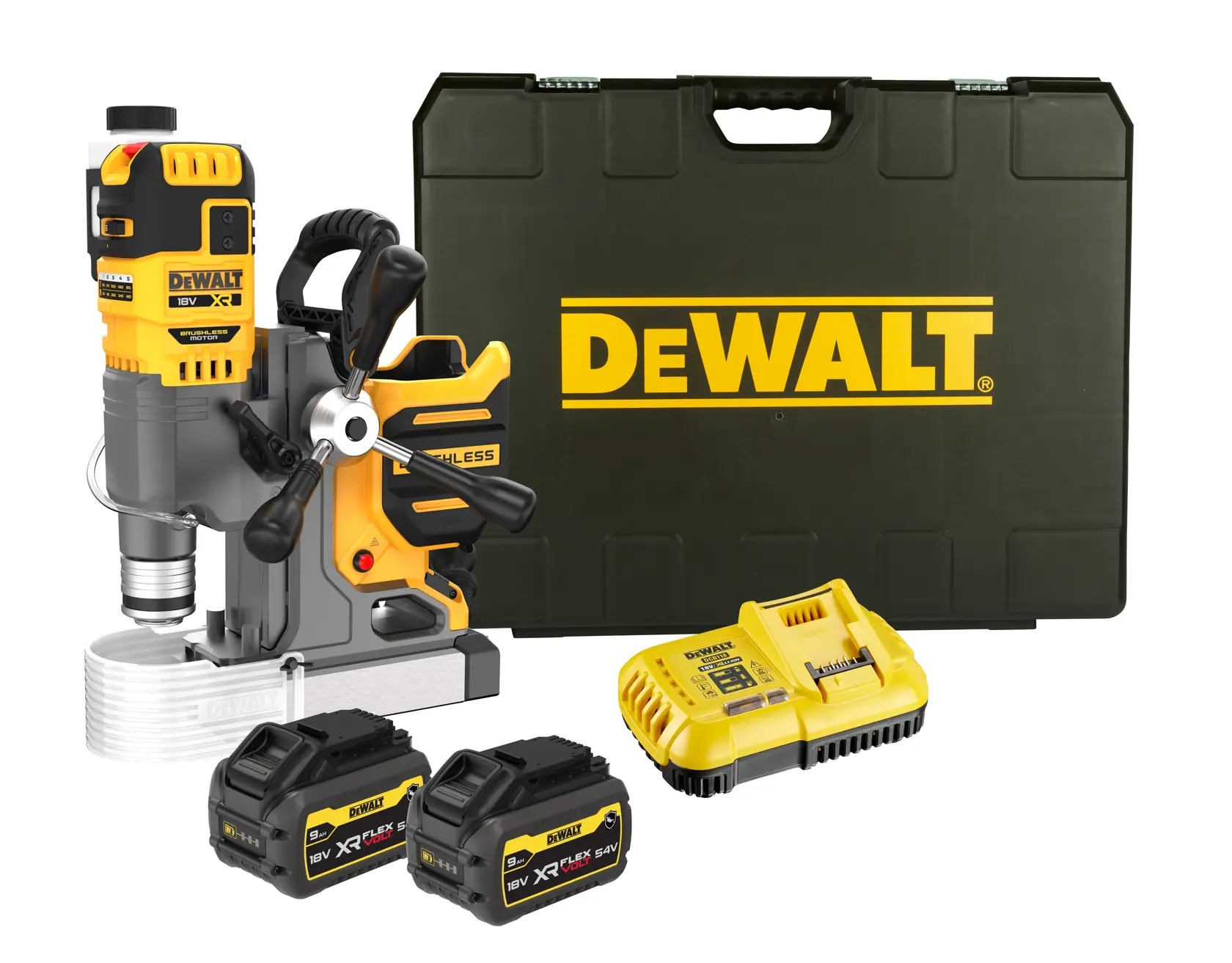

  • (2) 9Ah GFN Battery
  • (1) 16mm Chuck
  • (1) Reversible press handle
  • (1) Safety Chain
  • (1) Gravity fed cutting fluid tank
  • (1) Drilling guard
  • (1) Pilot Pin
  • (1) Heavy duty carrying case

  • 3 Year Limited Warranty, 1 Year Free Service, 30 Days Satisfaction Guaranteed

We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
